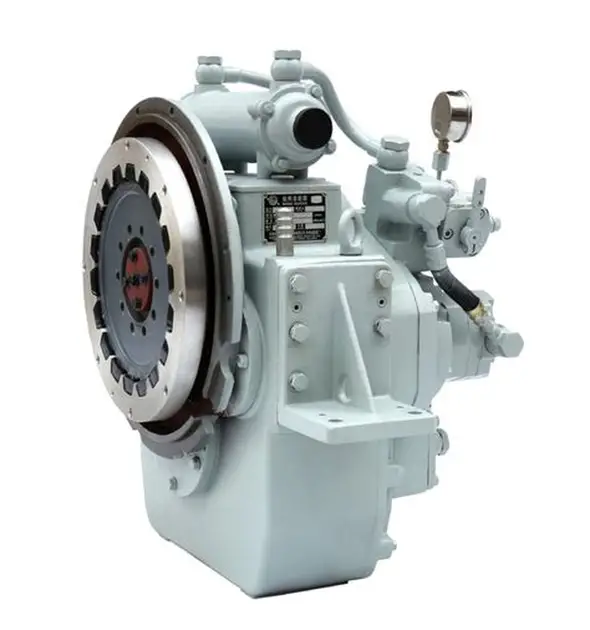

NEW Advance 120C Heavy Duty Marine Gearbox 1.48:1 Reduction

Advance 120C Heavy Duty Marine Hydraulic Gearbox For Commercial Applications and option for Live PTO.

Available in the following ratio options:

1.48:1 (0.136hp/RPM)
1.94:1 (0.136hp/RPM)
2.45:1 (0.136hp/RPM)
2.96:1 (0.122hp/RPM)
3.35:1 (0.109hp/RPM)

Max Input Speed 2500RPM

Adaptor Plate Options:

SAE3
SAE2
SAE1

Control Options:

Mechanical
Electronic

Drive Plate Options:

11.5”
14”

Option for Live PTO

Option for Gearbox Oil Cooler

Weight 225KG

Drop Centre 180mm

Dimensions 352x694x650 mm
